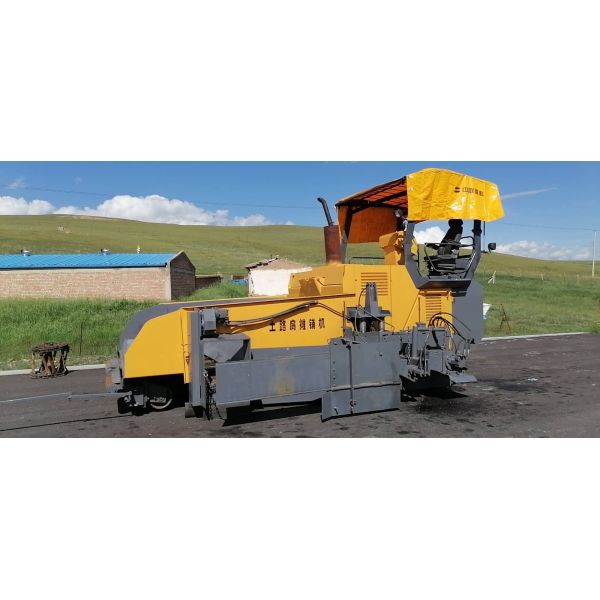

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

Name: Used TLJ1000 Soil Shoulder Paver with Deutz Engine 3500kg
Brand: Siming
Price: 55 USD

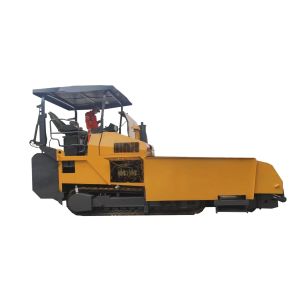

China Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg factory

Place of Origin : Jiangsu, China

Brand Name : Siming

MOQ : 1

Price : $55,700

Weight : 3500 kg

Engine power : 120-2300 kw/r/min

Engine model : Modified engine model

Walking speed : 2 km/h

Paving speed : 10m/min

Load capacity : 12t

Inner width : 3050mm

Feeding speed : 20m/min

Compactors quantity : 2 units

Width adjustment : 70~1000mm

Maximum thickness : 0~500mm

Width adjustment amount : 300mm

Engine brand : Deutz diesel engine

Core components : Engine, hydraulic pump, vibrating spear

Material conveying : Horizontal feeding system

Certification : ISO9001/CE

Contact Now

Application conditions:

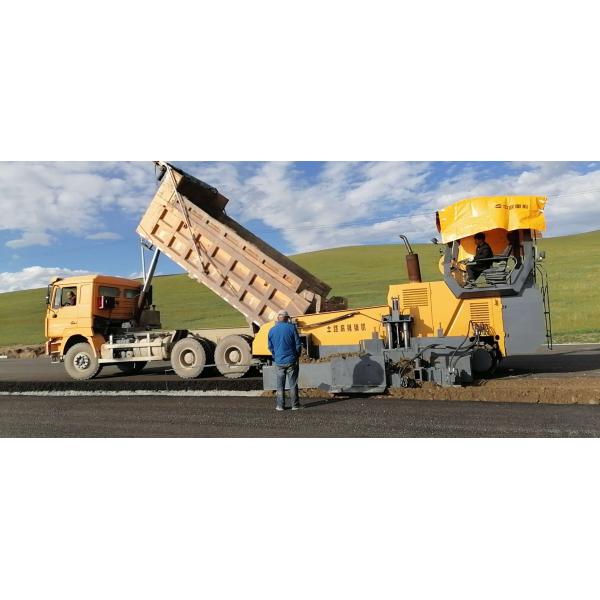

The TLJ-1000 soil shoulder paver is a specialized road shoulder soil paver that has been upgraded and renovated based on the asphalt concrete paver. It inherits the constant speed and stable walking drive system of the paver, and adopts a unique lateral feeding mode to evenly input the shoulder soil into the mold material groove. The mold can adjust the thickness and width continuously according to the process requirements of the shoulder soil, and then effectively compact the shoulder soil with front and rear compactors to achieve a density of over 90%. The use of this equipment has improved the construction process of shoulder soil, greatly enhancing the quality and efficiency of shoulder soil construction, reducing labor intensity, and especially significantly reducing construction costs. Received high praise from a large number of construction units.

technical parameters
Engine brand	Deutz diesel engine
Engine model	Modified engine model
Engine power	120-2300 kw/r/min
Walking system
Maximum paving speed	10m/min
Maximum walking speed	2km/h
Material conveying system
Load capacity of hopper	12t
Inner width	3050mm
Maximum feeding speed	20m/min
Shoulder soil mold device
Quantity of compactors	2 units
Width hydraulic adjustable	70~1000mm
Maximum thickness	1st gear 0~380 /2nd gear 220~500mm
Width hydraulic adjustment amount	300mm

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

Hydraulic system
* The hydraulic components are sourced from internationally renowned brands.
* Both solenoid valves and oil cylinders are well-known brands with reliable quality and stable performance.
· Hydraulic power output, can quickly connect hydraulic picks and other auxiliary equipment.

Control system:
* A brand new electrical circuit system ensures high reliability and safety.
* Adopting an intelligent control system, the LCD screen can accurately display the operating parameters of each system and has a fault diagnosis display function.

Material conveying system:
* The hydraulic opening of the silo door is convenient and fast to operate.
* Adopting a horizontal feeding system, the discharge is continuous, fast, and without jamming, resulting in higher efficiency.
* Adopting a high torque device, the power is strong, and the feeding speed can be adjusted up to a maximum of 20 meters per minute.

Mold forming system:
* Using 2 compacting vibrators, flexible and adjustable, with a wide range of adjustments.
* The thickness and width of the mold can be infinitely adjusted within a certain range by the hydraulic cylinder, which is easy
to use and adaptable to various working conditions.
* Quick hydraulic interface, easy to disassemble and connect without oil leakage.

1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
